Mounting To a 2016 Triumph Tiger 800

The Triumph Tiger range are very popular adventure touring motorcycle here in the UK. One of our valued customers has been fitting our Handlebar Clamp Bolt Attachment products to their 2016 Triumph Tiger 800 and sent us some photographs.

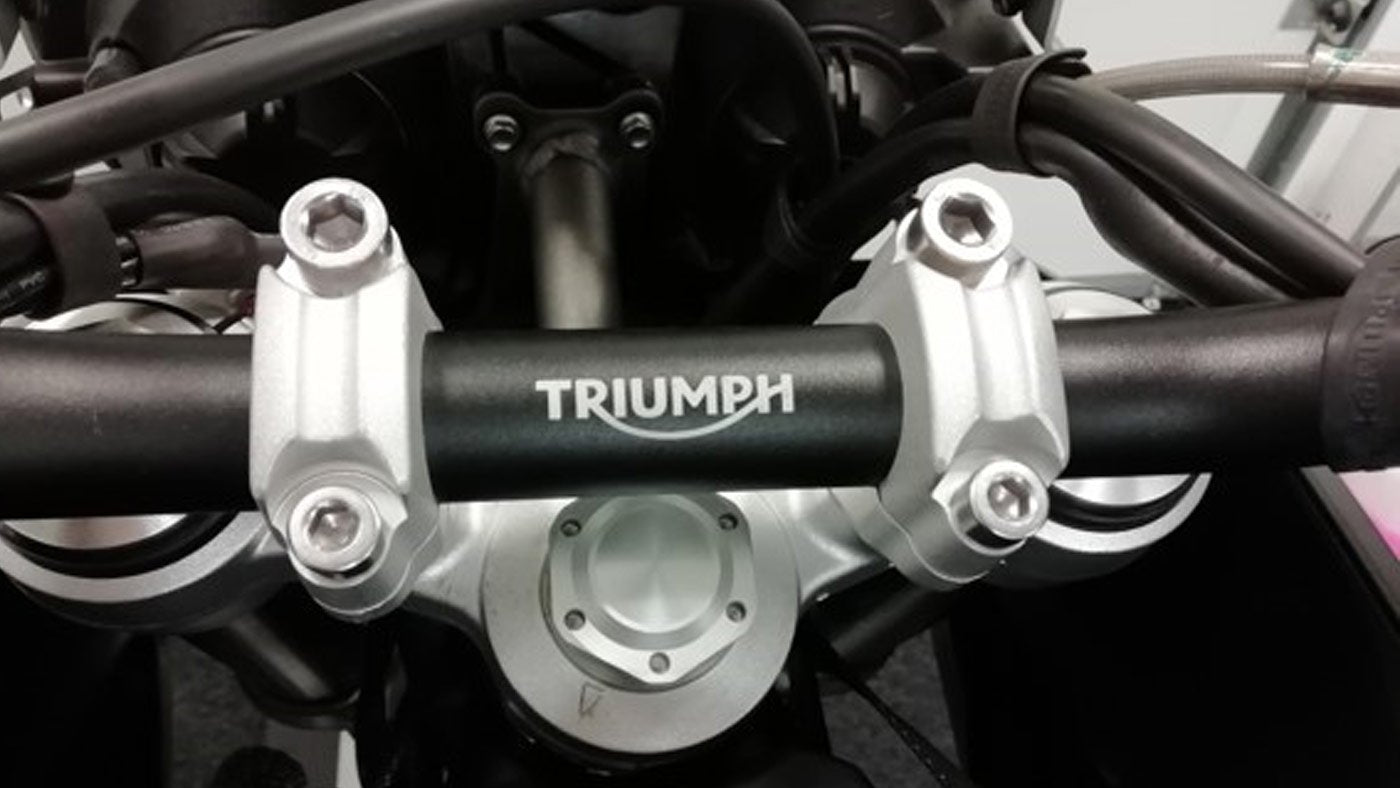

For reasons only known by Triumph, they have decided to use two different diameter clamp bolts and these change based on what Tiger model you have.

M10 on the top and M8 on the bottom, both with 1.25mm pitch which means that the M10 bolt is fine pitch and our bolts wont fit....

The Triumph M10 bolt is a fine thread (1.25mm for an M10). The bolt that we supply with all our clamp bolts is standard course / pitch, 1.5mm for an M10, 1.25mm for M8 so our M10 bolt will not fit so please select M8.

So it seems that Triumph have used a fine pitch for the M10 and a standard pitch for M8 – both being 1.25mm.

So if your looking to use the Ultimateaddons Clamp Bolt attachment on a Triumph Tiger 800, please select M8 size and mount to the bottom clamp bolts.

Please note, not all Triumphs are the same we highly recommend checking, the M8 is the common size for most manufactures but they do like to change things.

Triumph Tiger Models

Below models have M10 Top / M8 Bottom

TIGER 1200 XCA
TIGER 1200 XR
TIGER 800 Upto VIN: 674841
TIGER 800 XC Upto VIN: 674841
TIGER 800 XC From VIN: 674842
TIGER 800 XCa From VIN: 674842 to VIN: 855531
TIGER 800 XCa from VIN: 855532
TIGER 800 XCx Upto VIN: 674841
TIGER 800 XCx from VIN: 855532
TIGER 800 XR From VIN: 674842 to 855531
TIGER 800 XR from VIN: 855532
TIGER 800 XRt from VIN: 855532
TIGER 800 XRX Upto VIN: 674841
TIGER 800 XRX From VIN: 674842 to 855531
TIGER 800 XRX from VIN: 855532
TIGER 1200 XRT
TIGER 1200 XRX
TIGER Explorer Upto VIN: 740276
TIGER Explorer Upto VIN: 740276
TIGER Explorer XC Upto VIN: 740276
TIGER Explorer XCa From VIN: 740277
TIGER Explorer XC From VIN: 740277
TIGER Explorer XCx From VIN: 740277
TIGER Explorer XR From VIN: 740277
TIGER Explorer XRt From VIN: 740277
TIGER Explorer XRx from VIN: 740277

Below models have M8 bolts

TIGER 955i From VIN: 124106 to VIN: 198874
TIGER 955i From VIN: 198875 to VIN: 287503
TIGER 1050 From VIN: 287504 to VIN: 570058

Triumph Owners

If you have a Triumph and want to double check and don't have access to your bike we recommend using the part finder here:

https://www.worldoftriumph.com/partscatalog/catalog/select/catalog/triumphmc/method/model/

More information on the Ultimateaddons Handlebar Clamp Bolt Attachment
